Name: Ki Mobility Little Wave ARC Wheelchair
SKU: KiMobilityLittleWaveARC
Availability: BackOrder

Rogue

Frame – Standard
Seat Width – 12″ to 19″
Seat Width – 20″
Seat Width – 14″ to 19″
Seat Width – 20″
Sling Position on Frame
– Performance (2″ Behind Bend) / Classic (4″ Behind Front Bend)
Adjustable Depth – NO / 1/2″ Rear Adjustable
Front Seat Height – 13.5″ to 22″
Rear Seat Height – 12.5″ to 22″
Front Frame Bend – 70 / 75 / 80 / 85 / 90 Degree
Seat Sling to Footrest Length – 8″ to 20″
Footrest Taper – 1″ (4″ Narrower Than Seat Width) / 2″ (6″ Narrower Than Seat Width)
Rear Wheel Spacing – 0.75″ / 1″ / 1.25″ / 1.5″ / 1.75″
Rear Wheel Camber – 0 / 2 / 4 / 6 / 8 Degree
Center of Gravity Preset
Amputee Positions – -1.5″ to -0.25
Standard Positions – 0.5″ to 4.25
Backrest – Height Adjustable
Backrest Tube – Short (11″ to 14″) / Medium (12.5″ to 16.5″) / Tall (17″ to 19.5″)
Push Handles – Bolt-On / Single Stroller / Double Stroller
Back Option – Adjustable Height Rigidizer Bar
Spinergy Backrest Release Cable Colour – Black / red / White / Blue
Back Upholstery – Padded velcro Adjustable / Tension Adjustable / Omited
Seat Back Angle – standard – +3 / +6 / +9 / -3 / -6 / -9 / -12
Rear Wheel – Spoke / Mag / Superlite Spoke / Topolino Carbon Fiber / Spinergy Spox / Spinergy LX
Tabs – Short / Long
Rear Tire – Pneumatic
Handrims – Aluminum Anodized
Axle – Quick Release
Casters – 3″ / 4″ / 5″
Fork Option – Standard Fork
Armrest – Swing Away Tubular
Side Guard – Removable – Clamp-On Receiver
Wheel Locks – Push to Lock (Flush Mount)
Footplates – Tubular ‘Open’ Loop
Anti-Tips – Rear
calf Straps – Velcro Adjustable
Positioning Belts – NA

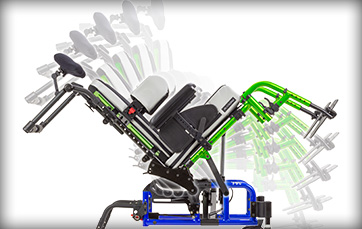

REPOSITIONING
Tilting the occupant has been made easier through an Arc shaped roller guide system helps translate the Center of Gravity throughout the tilt process.

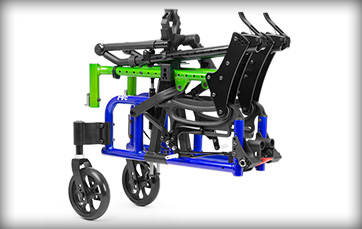

GET OUT AND GO!
Little Wave Arc is the lightest Pediatric Folding wheelchair with an incredible offering of options, colors, and seating from Axiom Custom Seating.

DRUM BRAKES
Slow your roll with drum brakes on 12″, 16″, or 20″ wheels.

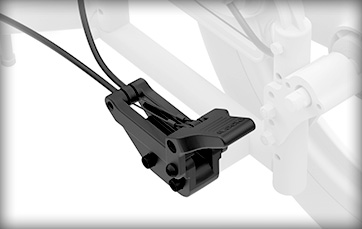

ATTENDANT WHEEL LOCK
Easy access to the wheel lock for the attendant.

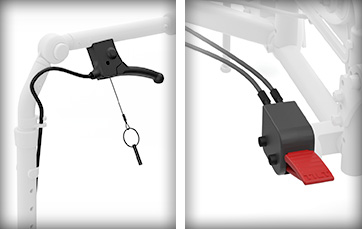

TILT OPTIONS
Tilt the occupant up to 45°. Single hand and foot tilt can be mounted on the left or right side.

FOLDING RECLINE BACK
Convenient and fast folding of the recline back assures the smallest folded package so you can get out and go.

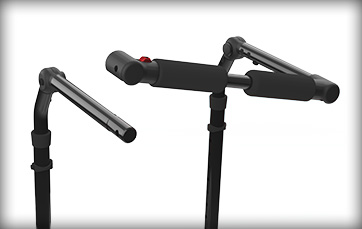

FOLDING ADJUSTABLE HANDLE
Allows for quick folding with the push of a button and remains on chair.

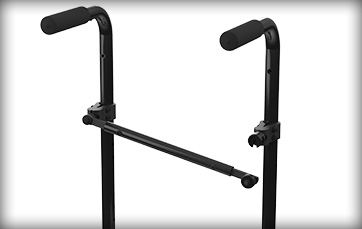

FOLDING HEIGHT ADJUSTABLE RIGIDIZER BAR
Adjusts to any height so it will not interfere with other cane mounted components or hardware. Twist the thumb knurl, disconnect one side, and fold the chair.

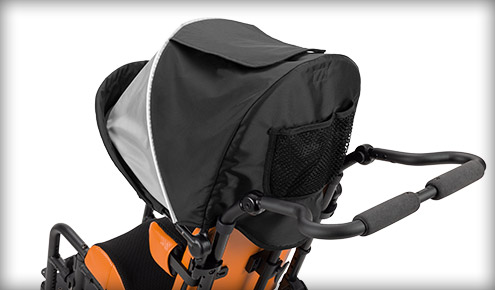

CANOPY
Help shield your child from the sun’s harmful rays or when the sky is dark and gray. The unique flip-up visor channels water off to the side or extends downward for extra protection from the elements.
